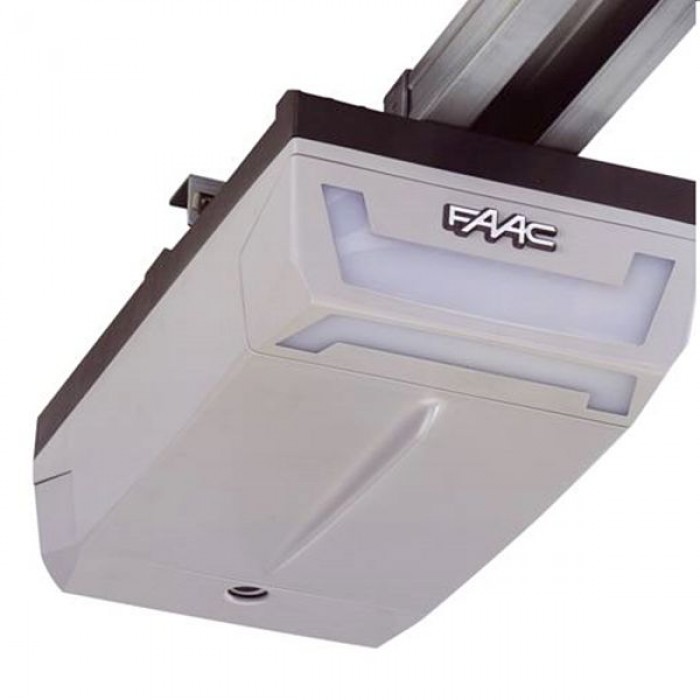

Faac D1000 operator for industrial doors

Faac D1000, Electromechanically-driven operator for sectional doors or spring/counterbalanced up-and-over doors

- For spring, counterbalanced up-and-over doors and sectional doors for residential (D600) and light commercial use (D1000).
- The D600 and D1000 operators are electromechanical devices using 24 Vdc motors, that can be used in sectional, spring balanced and, with the proper adaptor, in counter-weighted garage doors.
- The nylon base makes the operator lighter and with better handling compared to metal.
- FAAC has developed a patented head-rail connection. The operator can be mounted on the rail support without installation tools, a simple rotation to engage 4 supports of the plate and a pin to prevent unfastening.
- Installation time has been reduced by 40% on previous models.
- The electronic anti-crushing device adjusts itself automatically at Set Up.
- The operator keeps the tripping threshold constantly at minimum level, and adapts at all times to the differences in force required to move the door
- The device stops the door movement as it opens and reverses it at closing.
- To protect the door against mechanical stress as the movement begins, an electronic control gradually increases the speed of the operator (Soft Start).
- Deceleration, both at opening and closing cycle of the door, (Soft Stop).

Technical
IP Rating	20
Motor Voltage	24Vdc
Work Cycle	Continuous
