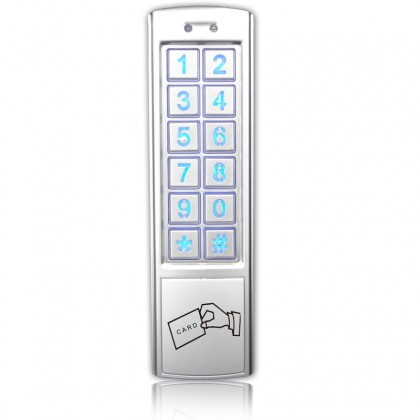

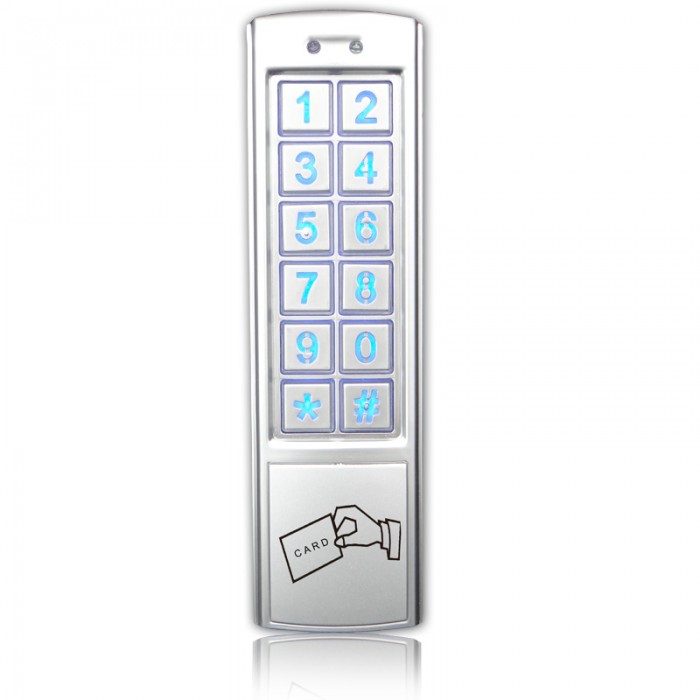

Linkcare ASC240SADK Slimline Waterproof Digital Keypad

Optional rain cover
Epoxy sealed
Vandal resistant
Die-cast aluminum
Frequency: EM125KHz
2-6 digits pins by programme
12 digits backlight keypad
Operation Voltage:12~24 Vac or Vdc
2 relays output NO/COM/NC and speaker output
Strike time:0â99 seconds
Zone1: up to 1000 codes or cards, or combined
Zone2: up to 10 codes or cards, or combined
2 LED indicators
Operation temperature: -30 to 70 degrees centigrade
Installation: Surface mounted
Cable length: 1 meter (14-wire for standâalone,16-wire for network)
Waterproof, Dustproof: IP66
Colour: Silver
Dimension: 44Ã150Ã40.7 (mm)
