Nice S-Fab2124 24Vdc underground kit with encoder for swing gates up to 2.3m

This is an ultra-compact underground installation swing gate kit for leaves up to 2.3m, with a 24Vdc motor and a magnetic encoder.

Sturdy and discreet: compact foundation box with a height of only 81mm

Steel with cataphoresis paint finish guarantees optimal resistance to corrosion, and a thickness of 2.5mm guarantees strength. All this in a protrusion of just 52mm from the ground.

Reliable and Sturdy: The gear motor is made of IP67 pressure die-cast aluminium, suspended inside the housing to enable drainage of deposits, ensuring optimal water resistance.

Practical and quick installation: The Exit lever on the motor is attached directly to the leaf.

Mechanical limit switches were adjustable on opening and closing.

Opening up to 180 degrees as standard.

Reliable and sturdy: The motor is made of IP67 pressure die-cast aluminium, suspended inside the housing to enable drainage of deposits, ensuring optimal water resistance.

Practical release from inside and outside, acting directly on the gear motor, easy to operate through the special key.

Control unit Moonclever MC824H, with BlueBUS technology, and compatible for operation with Solemyo and Opera systems:
simple programming, through a single key;
self-learning of opening and closing limit positions;
automatic fault diagnostics;
programming of pause time;
pedestrian pass door;
deceleration on opening and closing;
obstacle detection with dual technology;
operation in the event of a power failure through optional rechargeable batteries (PS324)
provision for connection of the latest generation resistive sensitive edges.

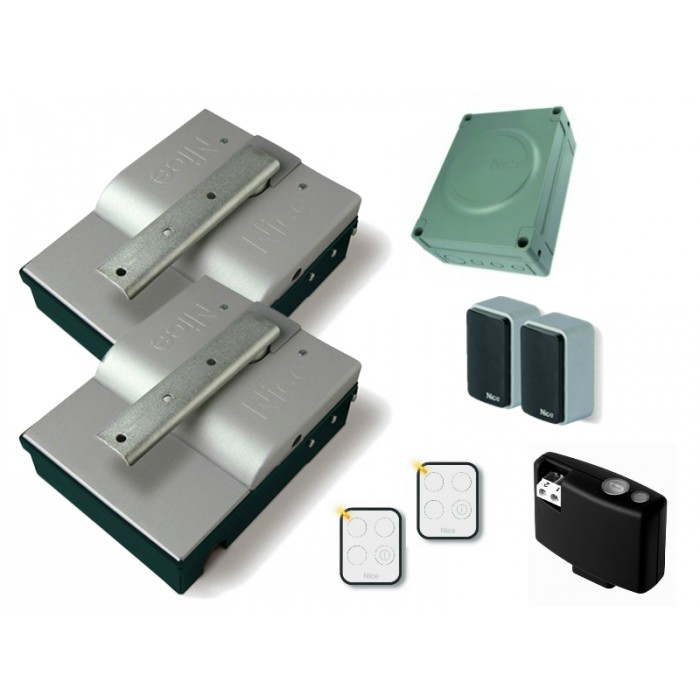

The kit contains:

2 x XFAB2124 Electromechanical gate motors
2 x XFABBOX Foundation box
2 x MYGO4 Four channels transmitters 433.92 MHz
1 x MC824H Control unit with OXI plug-in receiver
1 x EPMB Pair of photocell
1 x OXIBD Bi-directional receiver

Technical
Battery Backup Option	Yes
BlueBus	Yes
IP Rating	67
Max Gate Leaf Length	2.3m
Max Speed	1.25rpm
Motor Voltage	24Vdc
Solar Power Option	Yes
Work Cycle	60
