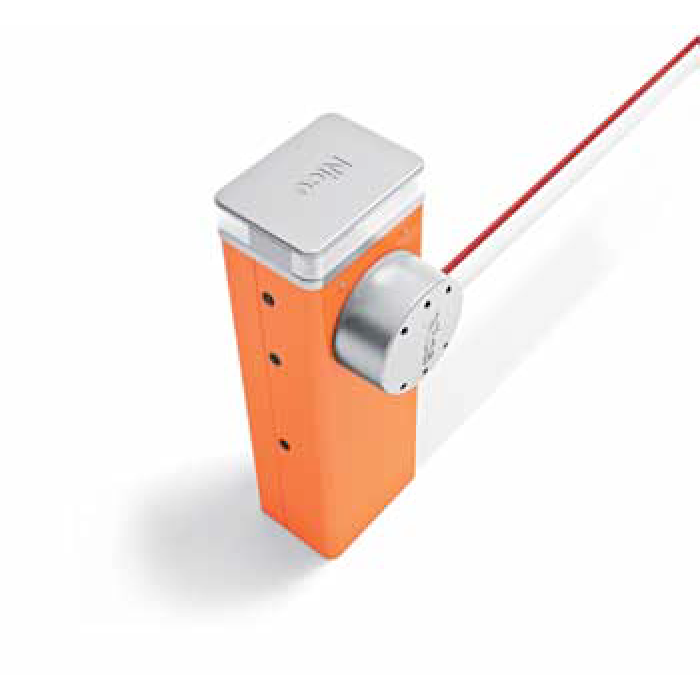

Nice M-BAR 24Vdc barrier for bars up to 7m

Nice M-BAR 24Vdc barrier for bars up to 7m
  • Modular: are easily assembled using the aluminium expansion joint.
  • Possibility for intelligent control of two opposing automations thanks to “master/slave” function.
  • Strength and reliability: robust structure in steel, new high strength balancing springs guaranteed up to 1,000,000 opening and closing operations and elliptical section bar with high wind-gust resistance.
  • Optional flashing or traffic light can be integrated in cover.
  • Encoder movement control and electromechanical limit switches.
  • More comfort and safety in programming and maintenance phases: the separate enclosures for electronics and mechanics protect internal parts from potential risks.
  • Rapid and easy access to the control unit located in the upper section of the barrier body.
  • Simple fixture of the completely concealed photocells onto the specially designed seats on the barrier body.
  • More safety and reliability: obstacle detection and monitoring of motor absorption during automation movement.
  • Automatic fault diagnostics during operation with consequent signalling of fault type through specific flash sequences.
  • Provision for connection of latest generation optical and resistive sensitive edges(with 8.2 K Ohm resistance).
  • Energy saving: the system sets to standby when not in use to save consumption.
  • No blackouts: emergency backup power with the optional batteries housed inside the case.
  • Release from side with metal key, can be installed on either side.

Nice M Bar barrier system


Technical
Battery Backup Option Yes
BlueBus Yes
IP Rating 54
Max Barrier Length 9m
Motor Voltage 24Vdc
Solar Power Option Yes
Work Cycle 150
